材質 JB Material |
PPO |
|
外形尺寸Dimensions: |
100mm*75mm*23.5mm |
|
額定電壓Maximum voltage: |
1000V DC |
|
測試電流 Rated current |
13A |
|
二極管Diodes |
10SQ050 |
|
工作溫度Temperature: |
-40 ℃ ~ +90 ℃ |
|
防護等級Waterproof Grade: |
IP65(Closed) |
|
線徑Cable Size |
4mm2 |
|
線纜長度Lables length |
1000mm |
|

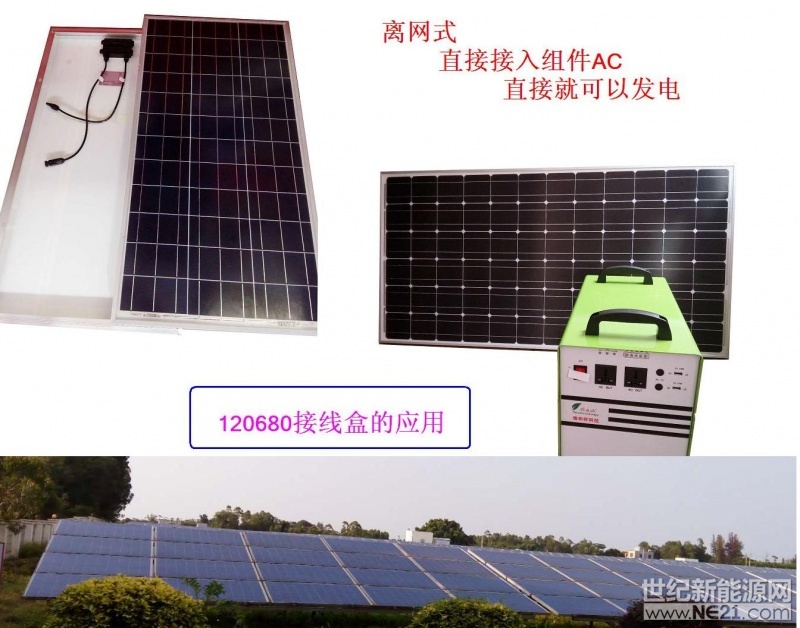

120680-4 (power:180W) |
|
